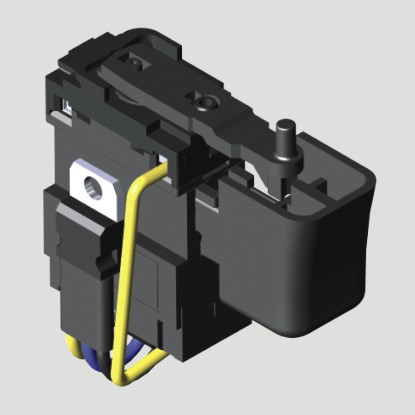

FA021A-12/1-A1/Z1-1

>>Order NO.：FA021A-0101
>>Middle-locking device
>>Electronic speed control(E)、High speed mechanical breakover
>>The external FET can be choosed

Description
>>Reversing commutation function（K）
>>Emergent stop equipment（B）
>>Middle-locking device
>>The battery hook can be mated(E)、 High speed mechanical breakover
>>External FET
>>DC double speed(2S)
>>DC single speed（S）

Technical data
>>Electric parameter： FA021A-12/1
7.2V-24VDC 12A 5E4
>>Mechanical life：1E5
>>Electric life：5E4
>>Approval certificate：TUV  UL ENEC

Special requests
>>The reversing pusher can be mated（ZA）
>>The battery hook can be mated
>>FET with thermal fin
>>Reversing stent can be mated
>>Motor output line can be mated
